Optimized Integration for High-Performance Applications
Flip Chip packaging is engineered for clients requiring cutting-edge semiconductor solutions, including high-speed CPUs, GPUs, and memory components. By positioning the chip's active side downward and directly connecting it to the bga substrate, this system efficiently reduces electrical path lengths, which is critical for minimizing signal distortion and parasitic effects. Targeted at device manufacturers and system integrators, this packaging method complements complex, high-frequency semiconductor designs, delivering a reliable foundation for advanced chip integration guided by a seasoned semiconductor packaging manufacturer.
Technical Specifications Enhancing Electrical and Thermal Performance
This packaging technology incorporates substrate and leadframe designs optimized for precise manufacturing tolerances. The substrate size adheres to industry standards such as 240mm × 70mm, with multiple cavity thickness options ranging from 0.45mm to 1.0mm, ensuring flexibility to accommodate diverse chip profiles. The inclusion of advanced semiconductor packaging materials facilitates excellent thermal dissipation, while minimized interconnect lengths significantly reduce parasitic inductance and capacitance. These measurable features enable exceptional signal integrity and thermal reliability essential for scalable production, positioning this FC method as a preferred offering from a reputable ic packaging supplier.
Industry Applications Delivering System-Level Benefits
Widely adopted in the semiconductor manufacturing sector, FC packaging supports high-speed processors, graphics processing units, and memory devices demanding stringent thermal management and signal fidelity. Its precise substrate bonding enhances performance in telecommunications, automotive electronics, and AI applications where compliance and reliability are non-negotiable. As a robust solution from a leading semiconductor packaging manufacturer, this packaging approach integrates seamlessly into wafer-level packaging lines and supports rapid prototyping workflows, providing measurable value in product development cycles and production scalability.
Product Advantages
Design Innovations for Enhanced Integration Reliability
The Flip Chip architecture offers a system-level advantage by reducing the footprint and enhancing electrical connectivity through direct chip-to-bga substrate bonding. This approach simplifies the interconnect structure, enabling advanced routing capabilities within the semiconductor packaging materials framework. Furthermore, its compatibility with a variety of substrate sizes and mold compound thicknesses optimizes mechanical robustness, guaranteeing compliance with evolving industry standards. The modular adaptability within this packaging framework underpins high-yield manufacturing, reinforcing the solution’s appeal among ic packaging suppliers committed to delivering consistent, quality semiconductor assemblies.
Operational Performance and Manufacturing Efficiency
From a performance standpoint, this packaging method ensures improved thermal management through effective heat dissipation, critical for extending device lifespan and maintaining signal quality in dynamic operating environments. The reduction of parasitic capacitance and inductance correlates directly to enhanced signal-to-noise ratios, advantageous in high-frequency circuits. The user-centric design incorporates rapid turnaround manufacturing capabilities, supporting fast prototyping and volume production. These factors contribute to operational efficiencies and alignment with stringent quality control processes demanded by reputable semiconductor packaging manufacturers, positioning the Flip Chip solution as a cost-effective choice without compromising reliability.
Product Features

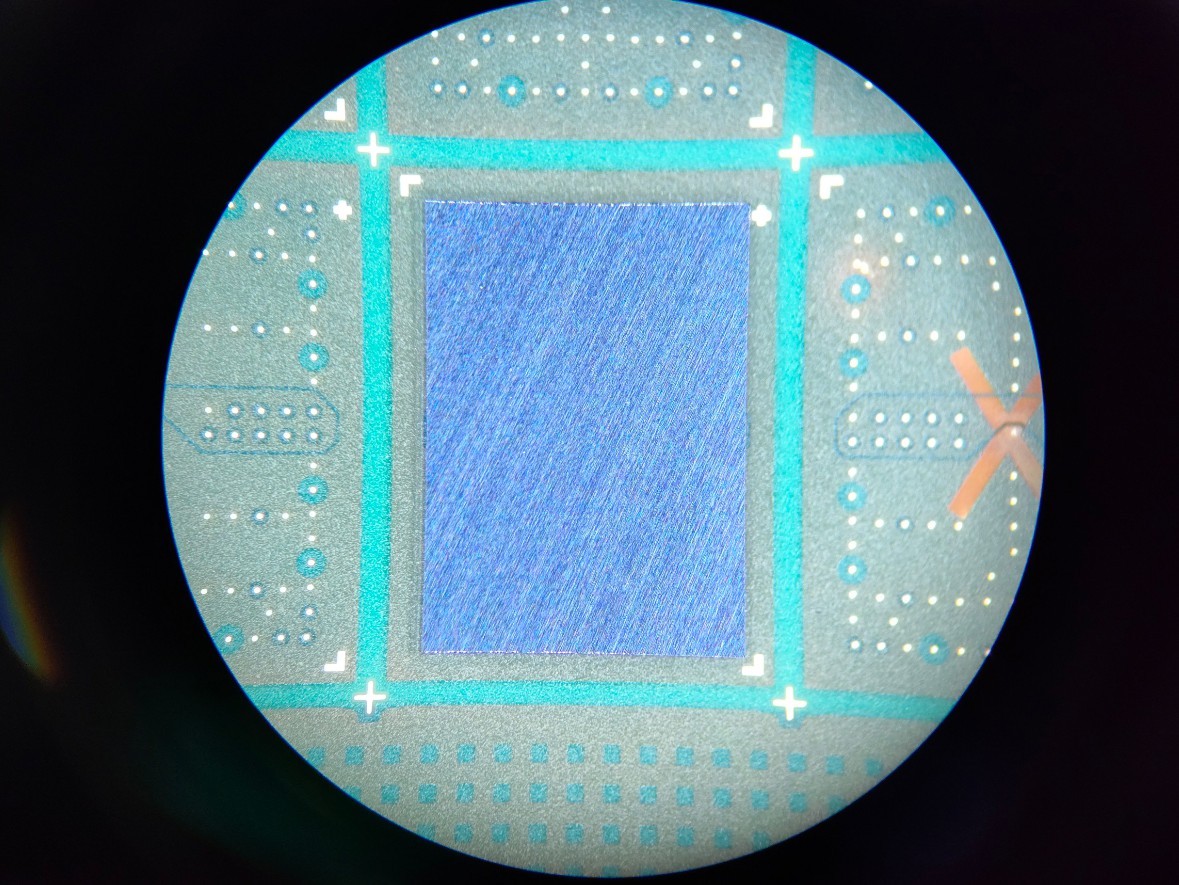

In flip-chip packaging, the active side of the chip faces downward, and solder bumps are directly bonded to the substrate. This achieves the shortest interconnect length, minimizing parasitic inductance and capacitance, and delivering top-tier high-frequency and high-speed performance. It also offers excellent thermal dissipation. Flip-chip is well-suited for CPUs, GPUs, and high-end memory devices.Use Scenarios
High-Speed Processor Packaging in Computing Environments
Within computing hardware manufacturing, Flip Chip packaging fulfills the stringent demand for minimal signal delay and enhanced thermal dispersion in high-speed CPUs and GPUs. Operating in environments where signal integrity directly affects computational performance, the integration with a precision-engineered bga substrate mitigates electrical parasitics and heat accumulation. This solution supports system-level integration workflows by providing substrates compatible with high-density interconnect boards, ensuring compliance with electrical and thermal metrics typical in advanced servers and workstations. Such application optimizes processor packaging performance while maintaining alignment with industry quality standards set by top-tier ic packaging suppliers.
Advanced Memory Device Packaging in Telecommunications
In high-frequency telecommunications infrastructure, memory modules leveraging Flip Chip packaging benefit from the excellent thermal management achieved through the use of specialized semiconductor packaging materials and substrate designs. This packaging method enhances device reliability under continuous operation by reducing thermal stress and electrical interference. The packaging system integrates smoothly into existing manufacturing lines, facilitating quick design iteration and mass production scalability. By upholding industry compliance and reliability parameters, this solution reinforces operational stability and efficiency vital to telecom equipment manufacturers sourcing from established semiconductor packaging manufacturers.
What customization options are available for Flip Chip packaging substrates and leadframes?
We offer full-process customization including substrate and leadframe design tailored to meet your product specifications. Our advanced packaging technology ensures the precise integration of semiconductor packaging materials to achieve optimized performance for your application.
How do you ensure high-frequency performance in Flip Chip packaging?
Our Flip Chip packaging minimizes interconnect length by bonding the chip's active side directly to the substrate with solder bumps. This reduces parasitic inductance and capacitance, enhancing signal integrity for high-speed applications. Such design is crucial for high-frequency devices like CPUs and GPUs.
Can you support rapid prototyping and volume production demands?
Yes, we provide rapid turnaround services for Flip Chip packaging, responding within 24 hours of receiving design files or RFQs. Our manufacturing process is scalable, enabling timely delivery for both prototype runs and volume production with consistent quality.
What makes Wanying Microelectronics a reliable IC packaging supplier?
Our expertise comes from a team with backgrounds at leading research institutes and semiconductor firms. We implement strict compliance and quality control across all stages—from semiconductor packaging materials selection to manufacturing—assuring reliability and long-term performance of your packaged devices.
